DRY FINISHING

KIER DECATIZER PF 2000 MILLENIUM



  A permanent finishing setting of the fabrics is achieved by one of the most
  advanced KIER DECATISING PROCESS. The machine is suitable for any kind
  of woollen or worsted fabrics, 100% wool and blend.

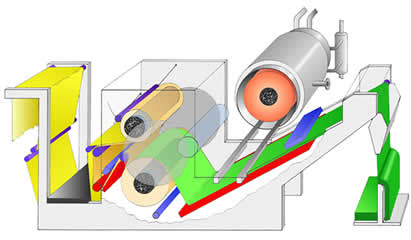

click to on enlarge photo

Main features:
Electronic and adjustable control of the wrapper tension. Axial wrapper centering. MILLENIUM software to achieve the most exclusive effects on the fabric. Guaranteed reproducibility of any kind of process. No water condensation phenomenon in the autoclave. Top level manufacturing systems


Standard models:
PF 2000 MILLENIUM MEDIUM - 3 beams: Hourly production up to 2000 meter
Autoclave diameter 1200 mm.

PF 2000 MILLENIUM MAGNUM - 3 beams: Hourly production up to 2900 meter
Autoclave diameter 1500 mm.




The electronic control of the wrapper tension is made by means of electronic load cells (TMTSYS). The wrapper winding values are automatically implemented during the winding process according to a mathematic curve, in order to eliminate the differences between the beginning and the end of the batch. The centering action of the wrapper, by means of an step-less alternate axial movement (TMTSYS), prevents the wrapper edges to become baggy and keeps a uniform tension of the wrapper itself. That increases the working life of the wrapper and avoids differences between centre and edges of the cloth.

TMT MANENTI via Rovella 1/3 VALLEMOSSO (Biella) - ITALIA
